Bioimaging Unit

Zeiss AxioImager (System 4)

Zeiss AxioImager with Apotome (System 4)

Modalities: upright, widefield

Overview

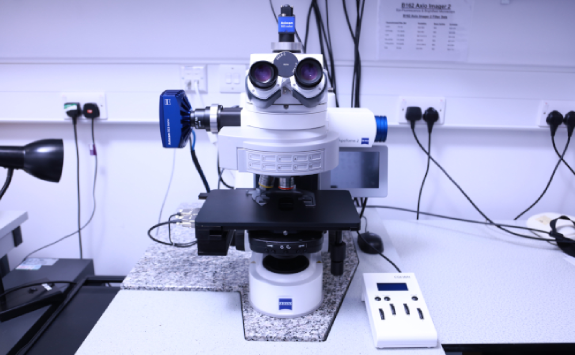

The Zeiss AxioImager with Apotome (System 4) is a high quality wide field imaging system.

The Zeiss AxioImager is a high quality imaging system that offers three modes of operation:

  • Brightfield transmitted light
  • Widefield fluorescence
  • Apotome structured illumination (confocal-like) fluorescence

The system utilises two separate camera systems for colour and monochrome imaging.

The Apotome (structured illumination) mode allows users to collect confocal-like images and ‘Z’ stacks, which can subsequently be projected as 3D images (stereo anaglyphs) and movies.

A range of fluorescent filters are available which cover the commonly used dyes:

  • DAPI
  • FITC
  • TRITC and CY5

the illumination source is a wide spectrum alignment free LED (colibri) system.

The microscope has as an autofocus system and a precision motorised stage which enables users to automatically acquire tiled images from large specimens (or from an entire slide) and stitch them together post capture.

Analysis of data/images can be carried out using the Zen blue software which includes quantification and colocalisation modules.

Imaging modes

  • Wide field fluorescence
  • Brightfield
  • Multi-point x,y (2D) with tiling
  • Volume x,y,z (3D)
  • Structured illumination (Apotome, fluorescence only)
  • Phase contrast
  • DIC
Zeiss Axioimager (4)

Specification

Here you can find the specifications for this microscope.

Objectives

Magnification NA Coverslip Other modes Immersion
2.5 0.085     Air
5 0.16 0.17 Ph1 Air
10 0.45 0.17 Ph1 Air
20 0.8 0.17 Ph1 Air
40 1.3 0.17 Ph2 Oil
63 1.4 0.17 Ph3 Oil



















Filters (epi)

Cube

Example fluorophores

Excitation

Dichroic

Emission

Part number

Zeiss 49 DAPI, Hoechst 335-385 395 420-470
Zeiss 38 HE GFP, FITC, AF488 450-490 495 500-550
Zeiss 46 HE FITC+AF488 487-512 515 520-550
Zeiss 20 HE TRITC, Rhodamine 540-552 560 575-640
Zeiss 50 CY5, Af647 625-655 660 665-715

Zeiss 64 HE mCherry, AF568, AF594 575-600 605 612-680



















Light source (epi)

Colibri’ 1- LED fluorescent light (365,470,555,625)

Detectors (cameras)

Zeiss Axiocam 503 (Monochrome for fluorescence imaging)

Zeiss Axiocam 105 (Colour for brightfield HC)

Location

West Wing, International Centre for Life, room B157

Newcastle University
International Centre for Life
Central Parkway
Newcastle upon Tyne
NE1 3BZ

Enter your postcode or address to find directions

Booking

Find out how to book this microscope.

Booking information

  • The minimal booking time for this system is 30 minutes.
  • Time increments of 15 minutes are permitted.
  • Bookings can be cancelled with no charge up to an hour before scheduled use.

Training

Here you find useful training videos for the system.

Zen Blue software tutoial.

Explore Zen.
