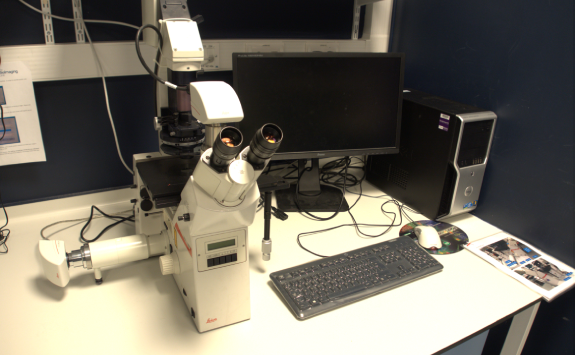

Leica DMIR
Leica DMIR
Modalities: invert, widefield
Overview
This sytem has both colour (Leica DFC290) and mono (Leica DFC365FX) cameras, a manual stage and a filter wheel.
The microscope is running a basic version of LasX.
The system is capable visualising Fluorescent and Brightfield.
Specification
Objectives
Magnification |
NA |
Coverslips |
Other modes |
Immersion |
| 4 | 0.1 | 0.17 | Air | |
| 10 | 0.22 | 0.17 | PH1 | Air |
| 10 | 0.4 | 0.17 | PH1 | Air |
| 20 | 0.5 | 0.17 | PH2 | Air |
| 40 | 0.7 | 0.17 | PH2 |
Filters (epi)
Cube |
Example Fluorophores |
Excitation |
Dichroic |
Emission |
Part Number |
| Leica A | DAPI | 340-380 | 400 | 425LP | |
| Leica L5 | GFP | 460-500 | 505 | 512-542 | |
| Leica N2.1 | Cy3 | 515-560 | 580 | 590LP |
Light source (epi)
Camera
Leica DFC365FX- CCD Monochrome
Leica DFC290 - Colour
Location
William Leech Building, Room M2.142
Medical School
Newcastle University
Newcastle upon Tyne
NE2 4HH
Enter your postcode or address to find directions
Booking
Find out how to book this microscope.
Booking information
- The minimal booking time for this system is 30 minutes.
- Time increments of 15 minutes are permitted.
- Bookings can be cancelled with no charge up to an hour before scheduled use.
