Nikon A1 Confocal (Upright)

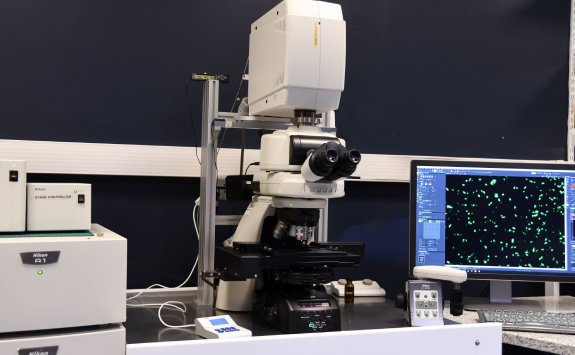

The Nikon A1+ is a point scanning confocal microscope based around a fully motorized, upright Nikon Ni body.

The system has four photomultipliers (two of which are GaAsP) for fluorescence imaging and an additional one for transmitted light detection.

Imaging can be performed at up to 4096 x 4096 pixel resolution.

The system is run through Nikon’s versatile Elements software package and incorporates wizards to perform common imaging tasks such as:

  • FRET
  • colocalisation
  • data quantification


Here you can find the specifications for this microscope.

Example objectives

LensImmersionNA (mm)
100x Oil 1.4
60x Oil 1.4
40x Oil 1.3
40x Air 0.6
20x Air 0.75
10x Air 0.4
4x Air 0.2

Imaging modes

  • multi point x,y (2D) with tiling
  • volume x,y,z (3D)
  • time lapse x,y,z,t (4D)

Laser lines

  • 405nm
  • 488nm
  • 561nm
  • 647nm
