Zeiss LSM700
Zeiss LSM700
Modalities: invert, confocal, live cell
Overview

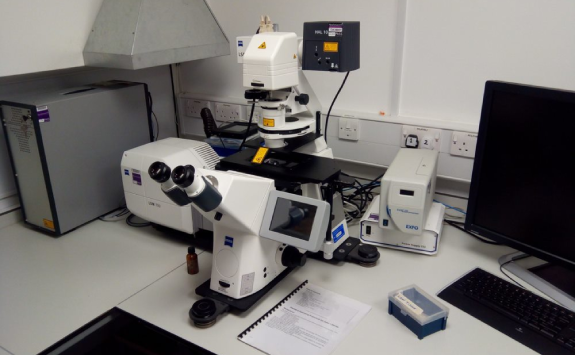

The LSM700 is a point scanning confocal microscope built on an inverted microscope body.
There are a full range of objectives and the microscope is automated except for the condenser arm and stage. The focus drive can be driven by the software, making z stacks possible.
For confocal imaging, there are 3 excitation laser lines (405, 488 and 561 nm) and for detection, 2 photomultiplier tubes (PMTs) in the scanhead using a shared pinhole which can be separated by a sliding dichroic, plus a transmission PMT for brightfield.
2 or 3 colour fluorescence imaging is therefore easy, and 4 or 5 colour imaging too, provided that good separation of the fluorophores is possible.
Finally, for short term live cell imaging, a stage top incubator is available, with temperature and CO2 regulation.
Imaging modes:
- Spot scanning, line scanning, 2D (xy) or 3D (xyz)
- multichannel with timelapse,
- ROI scanning with bleaching, allowing FRAP
Specification
Here you find the specification for this microscope.
Objectives
Magnification |
NA |
Coverslip |
Other modes |
Immersion |
10 | 0.3 | 0.17 | Air | |
20 | 0.5 | 0.17 | Air | |
40 | 1.3 | 0.17 | DIC | Oil |
63 | 1.4 | 0.17 | DIC | Oil immersion |
Filters (epi)
Cube |
Example fluorophores |
Excitation |
Dichroic |
Emission |
Part number |
Zeiss 10 | AF488, FITC | 450-490 | 510 | 515-565 | |
Zeiss 20 |
TRITC, Rhodamine | 540-552 | 560 | 575-640 | |
Zeiss 49 | DAPI, Hoechst | 335-385 | 395 | 420-470 |
Sliding dichroic combined with SP555, LP560
Laser lines
Diode 405 nm, Solid state 488 and 561nm
Detectors
2 PMT plus 1 Transmission PMT
Location
Biogerontology Building, Room F1.48
Health Innovation Neighbourhood
Nuns Moor Road
Newcastle University
NE4 5PL
Enter your postcode or address to find directions
Booking
Find out how to book this microscope.
Booking information
- The minimal booking time for this system is 30 minutes.
- Time increments of 15 minutes are permitted.
- Bookings can be cancelled with no charge up to an hour before scheduled use.
