Zeiss Axioscan 7

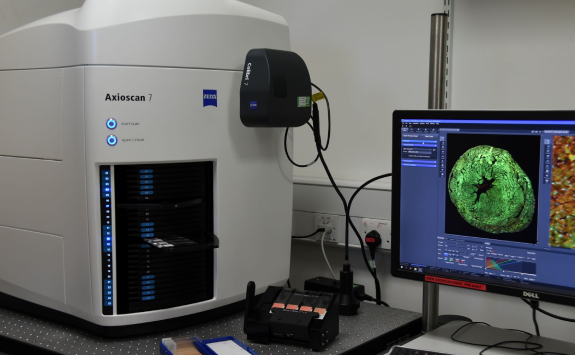

Zeiss Axioscan 7 - Slide Scanner
Modalities: High-performance Slide Scanner for Fluorescence, Brightfield and Polarization
Overview
Zeiss Axioscan 7 combines high speed digitization and outstanding image quality plus an unrivaled variety of imaging modes in a fully automated and easy to operate system. ZEISS Axioscan 7 has a 100 slide capacity and is able to produce digitized slides at dramatically improved speed, thanks to hardware components designed for extended, uninterrupted operation.
Highlights:
- Fully motorized condenser, powerful light sources and sensitive cameras ensure 24/7 scan performance, whether you have many similar slides or mixed applications to process.
- ZEISS Axioscan 7 allows rapid switching among fluorescence, brightfield and polarization scanning modes, with the highest quality fast and gentle imaging fully available to you in each of these modes.
- ZEN Slidescan is integrated within the powerful ZEN imaging software, which provides access to numerous additional processing and analysis functions.
- Axioscan 7 employs swift and reproducible LED illumination, fast filter wheels, and a sophisticated filter concept to efficiently separate a broad range of fluorescence channels.
Imaging Modalities
- Wide field fluorescence- Highly Productive Fluorescent Imaging
- Fast Brightfield Mode
- Multi-point x,y (2D) with tiling
- Volume x,y,z (3D)
- Phase contrast
- TIE Contrast
- Polarisation Mode
Further info can be found here.
Specification
Objectives
Magnification |
NA |
Coverslip |
Other modes |
Immersion |
2.5 | 0.12 | 0.17 | Air | |
5 | 0.25 | 0.17 | Air | |
10 | 0.45 | 0.17 | Air | |
20 | 0.045 | 0.17 | POL | Air |
20 | 0.8 | 0.17 | Air |
|
40 | 0.95 | 0.17 | Corr | Air |
Filters (epi)
Cube |
Example fluorophores |
Excitation |
Dichroic |
Emission |
Part number |
Zeiss 49 | DAPI, Hoechst | 335-385 | 395 | 420-470 | |
Zeiss 38 HE |
GFP, FITC, AF488 | 450-490 | 495 | 500-550 | |
Zeiss 43 HE | CY5, AF647 | 625-645 | 660 | 675-715 | |
Zeiss 90HE | DAPI/GFP/CY3/CY5 | ||||
Zeiss 91HE | CFP/YFP/mCherry | ||||
Zeiss 110HE | DAPI/GFP/CY3.5/CY7 | ||||
Zeiss 96HE | BF |
Light source (epi)
X-cite Xylis LED
Cameras
Axiocam 705 Colour
Axiocam 712 Mono
Zeiss Axiocam 105
Location
Bio-Imaging Unit, William Leech Building, Room M2.149
Newcastle University
William Leech Building
Medical School
Framlington Place
Newcastle upon Tyne
NE2 4HH
Enter your postcode or address to find directions
Booking
Find out how to book the system.
Booking information
- The minimal booking time for this system is 30 minutes.
- Time increments of 15 minutes are permitted.
- Bookings can be cancelled with no charge up to an hour before scheduled use.
